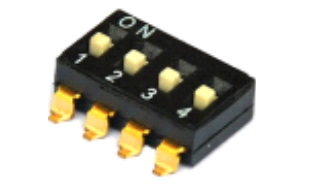

拨码开关
运用具有良耐热性和抗化学功能的工程塑料。
规范的镀金接点保证可靠性和长寿命性。
开关通断时可主动清洁触点。
广泛运用于数据处理、通讯、遥控和防盗主动警铃系统等需求手动程式编制的产品上。
规范的镀金接点保证可靠性和长寿命性。
开关通断时可主动清洁触点。
广泛运用于数据处理、通讯、遥控和防盗主动警铃系统等需求手动程式编制的产品上。
系列 | 图片 | 动作力 | 额定电流 | 接触电阻 | 绝缘电阻 | 耐电压 | 机械寿命 | 电气寿命 | 资料下载 |
---|---|---|---|---|---|---|---|---|---|
SMQS | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 500VDC | 500VDC/1 minute | 5000 | 3000 | - | |
SMQP | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 500VDC | 500VDC/1 minute | 5000 | 3000 | - | |
SMQA | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 500VDC | 500VDC/1 minute | 5000 | 3000 | - | |
SMWE | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ | 500VDC/1 minute | 2000 | 2000 | - | |
SMXS | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - | |
SMXH | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - | |
SMXP | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - | |
SMXMS | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - | |
BSD | ≥800gf | 0.5A, 12V DC | ≤50mΩ | / | / | 3000 | 1000 | - |
详细资料请致电或直接联系我们
