简体中文Overcurrent Protector
Overcurrent Protector is an overheat protection element with both over-temperature protection and precise control of current overload.It can effectively prevent damage to high-power motors, transformers, etc. caused by excessive current and high temperature.It is produced by KLIXON ® proprietary technology of Sensata.
| Model | Photo | Operating Temperature | Tolerance | Reset Mode | Dimension (mm) | Contact Ratings | Control Current Range | Detection Temperature Time | |
|---|---|---|---|---|---|---|---|---|---|

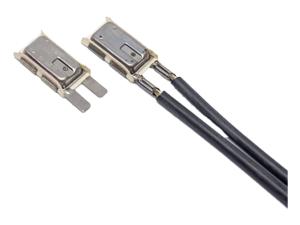

| Single-phase External |  | 90℃～150℃ （One spec per 5°C） | ±5℃ |
Auto Reset Manual Reset | / | / | 3～180A | 4～10s |  |

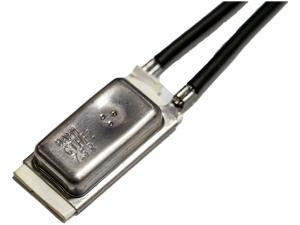

| 14HM |  | 90℃～170℃ （One spec per 5°C） | ±5℃ | Auto Reset | 10.3 x 12.2 x 23 | 50A / 240V - AC | 3～60A | 4～10s | - |

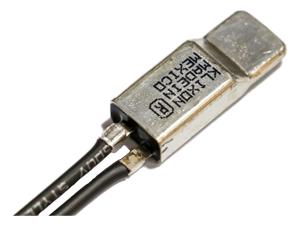

| 3HM |  | 90℃～175℃ （One spec per 5°C） | ±5℃ | Auto Reset | 11.4 x 15.8 x 27.2 | 80A / 240V - AC | 3～80A | 4～10s | |

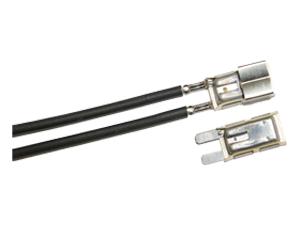

| 8AM |  | 90℃～150℃ （One spec per 5°C） | ±5℃ | Auto Reset | 7.7 x 13.3 x 35.5 |
60A / 240V - AC 80A / 120V - AC | 3～80A | 4～10s | |

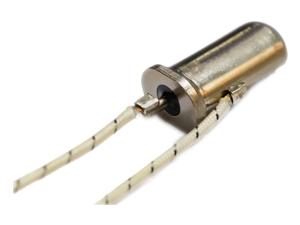

| 2AM |  | 90℃～150℃ （One spec per 5°C） | ±5℃ | Auto Reset | 7.5 x 12.7 x 31.8 |
60A / 240V - AC 80A / 120V - AC | 3～60A | 4～10s | |

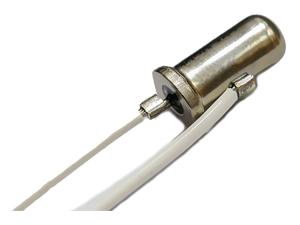

| 3MP |  | 80℃～170℃ （One spec per 5°C） | ±5℃ | Auto Reset | 3.7 x 9.3 x 23 |
15A / 240V - AC 80A / 120V - AC | 3～32A | 4～10s | |
| 2MP |  | 80℃～170℃ （One spec per 5°C） | ±5℃ | Auto Reset | 2.9 x 8 x 15.7 |
6A / 240V - AC 12A / 120V - AC | 3～20A | 4～10s | - |
Please call us or contact us for more information
