Three-phase Motor Protector
Three-phase motor protector is produced by KLIXON ® proprietary technology of Sensata.It is a protection element with both precise control of temperature and current overload, which can protect three-phase motors from damage caused by overheating,(These conditions include: phase loss, locked rotor, plug power, stall or start failure, high power overload, high ambient temperature and no ventilation.) with precise tripping time, reliable performance and auto reset.
Model | Photo | Operating Temperature | Reset Mode | Rated Voltage | Control Current Range | Detection Temperature Time | Dimension (mm) | |
---|---|---|---|---|---|---|---|---|
Three-phase External | 60℃~150℃ |
Auto Reset Manual Reset | 220V,440V | 3~270A | 4~10s | / | ||

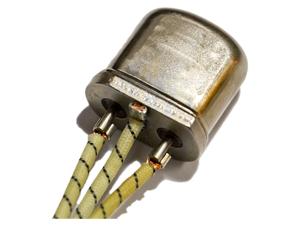

37HM | 100℃~180℃ | Auto Reset | 230V,460V,575V | 3~105A | 4~10s | 32 x 20 x 19.1 | ||

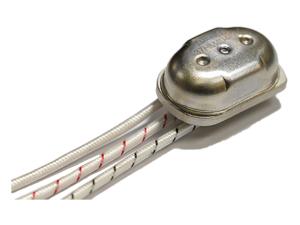

35HM | 95℃~175℃ | Auto Reset | 230V,460V,575V | 3~240A | 4~10s | 37.3 x 21.8 x 34.9 | ||

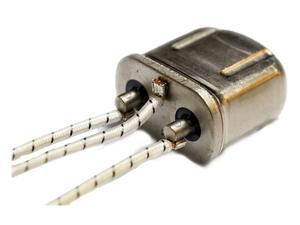

34HM | 95℃~175℃ | Auto Reset | 230V,460V,575V | 3~105A | 4~10s | 29.7 x 17 x 29 |
Please call us or contact us for more information
