简体中文Dip switch
Engineering plastics with good heat resistance and chemical resistance are used.
Standardized gold-plated contacts ensure reliability and long life.
The contacts can be actively cleaned when the switch is turned on and off.
Widely used in data processing, communication, remote control and anti-theft active alarm systems that require manual programming.
| Model | Photo | Operating Force | Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Mechanical Life | Electrical Life | |
|---|---|---|---|---|---|---|---|---|---|

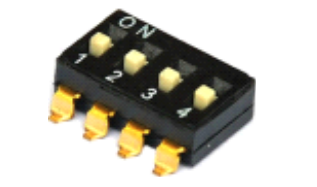

| SMQS |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 500VDC | 500VDC/1 minute | 5000 | 5000 | - |
| SMQP |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 500VDC | 500VDC/1 minute | 5000 | 5000 | - |
| SMQA |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 500VDC | 500VDC/1 minute | 5000 | 5000 | - |
| SMWE |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ | 500VDC/1 minute | 2000 | 2000 | - |
| SMXS |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - |
| SMXH |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - |
| SMXP |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - |
| SMXMS |  | ≥1000gf | Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC | ≤50mΩ | ≥100MΩ at 100VDC | 300VDC/1 minute | 3000 | 1000 | - |
| BSD |  | ≥800gf | 0.5A, 12V DC | ≤50mΩ | / | / | 3000 | 1000 | - |
